Pure Copper Chemical Earthing Electrode: Complete Guide
Grounding plays an important role in protecting your electric appliances and ensuring protection from hazards. It is important to ensure that there are no faults that may affect the electric devices. Currently, there are various grounding methods; nevertheless, the most effective and durable one is the Pure Copper Chemical Earthing Electrode.
In this blog post, we shall discuss the application of Pure Copper Chemical Earthing Electrodes and shed some light on how they work and their benefits.
What is a Pure Copper Chemical Earthing Electrode?
A Pure Copper Chemical Earthing Electrode is a highly efficient grounding element consisting of pure copper. It is installed vertically in the ground and surrounded by a specially designed conductive compound that helps maintain low earth resistance.
Unlike traditional earthing systems, which depend only on soil conductivity, conductive backfill material increases electrical conductivity in the area of the earth electrode in chemical earthing systems. As a result, reliable grounding performance is guaranteed irrespective of the type of soil, whether dry or rocky.
The reason copper is used as an earth electrode in earthing systems is due to its excellent electrical conductivity, durability, and corrosion resistance.

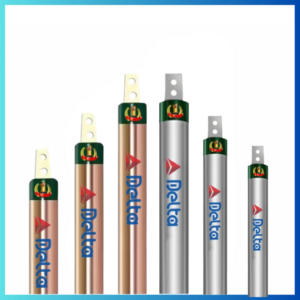

Chemical Earthing Electrodes
Components of a Chemical Earthing System
A chemical earthing system based on a copper electrode features several key elements that are essential for its optimal operation.
- Copper Electrode
The main element of the system, through which fault current is carried to the ground. - Conductive Backfill Compound
A specially formulated material is placed around the electrode to maintain moisture and improve soil conductivity. - Inspection Chamber
Installed at ground level for easy access during testing and maintenance. - Earthing Strip or Wire
The conducting connection of the electrical installation with the earthing electrode.
Why is Copper Considered the Best Material for Earthing Electrodes?
Copper is one of the most common materials used in electrical grounding. When it comes to the earthing of electrical installations, the quality of materials that will be used in creating the electrode is extremely important, since the efficiency of earthing largely depends on it. Being highly conductive and durable, copper can significantly decrease resistance and protect from equipment damage or failures.
One of the major advantages of copper is its ability to ensure high conductivity, since fault currents should flow freely from the faulty point of an electrical system into the earth.
The Advantages of Pure Copper Chemical Earthing Electrodes
There are many advantages of pure copper chemical earthing electrodes in comparison with other methods.
- Low Resistance due to Earth Resistance – As it is made up of a good conducting material, the earth resistance is guaranteed to be low even in dry conditions.
- Resistance to Corrosion – Being very corrosion resistant, it will ensure the long-term use of the system without any problems.
- Minimal Maintenance – Such types of earthing systems require minimal maintenance.
- Improved Electrical Safety – The chemical earthing system ensures an easy path for the flow of fault current.
- Suitable for Different Soils – Chemical earthing systems work very effectively in soils that have high resistivity or poor soil contact conditions.
Common Applications
They are used extensively in various industries because of their efficiency.
- In Residential Buildings
Chemical earthing is done to provide grounding for electrical panels and other electrical equipment in households. - In Commercial Complexes
It provides grounding protection for offices, shopping malls, and institutions.
- In Industrial Establishments
It is useful to protect electrical equipment, machines, and power distribution systems. - Telecommunication Tower Structures
Provides effective grounding protection for telecommunication devices. - Power Generation Stations and Switchyards
It aids in the effective dissipation of high fault currents in power plants.

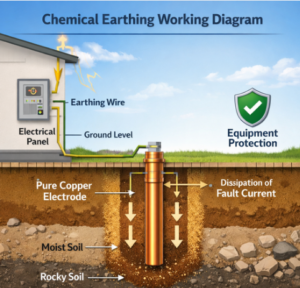

Chemical Earthing Working Diagram
Installation Procedure
A chemical earthing electrode needs to be installed following electrical safety guidelines to ensure effective grounding.
- Select Site for Earthing – Select a proper site with sufficient soil depth to facilitate grounding.
- Excavation of Earth Pit – Dig the pit to the required depth and dimensions.
- Embedding of Copper Rods – Insert the copper rods vertically into the pit.
- Placement of Conductive Material – The pit must be filled with conductive material.
- Installation of Earthing Strip/Wire – Connect the earthing strip or wire with the rod.
- Installation of Inspection Chamber – Provide an inspection chamber near the ground surface.
- Testing of Earth Resistance – Use an earth tester for checking earth resistance.
Conclusion
A pure copper chemical earthing electrode is one of the most efficient solutions that may be used for the electrical grounding of any type. It possesses all the necessary characteristics needed to ensure reliable operation for many years.
The copper chemical earthing electrode is used in a wide range of buildings, including private homes and office buildings, to ensure proper protection of electrical appliances and people from accidents.
