GI Chemical Earthing: Working, Benefits, and Applications Explained
Electrical safety is one of the key aspects for any residential, commercial, or industrial infrastructure. A good earthing system will provide safety for electrical equipment as well as for the lives of the occupants. Of the various grounding options provided by the market today, GI chemical earthing is one option that is gaining popularity for its reliability.
In this article, we will explain what GI chemical earthing is, how it works, its benefits, applications, and why it is widely used in modern electrical systems.
What is GI Chemical Earthing?
The GI chemical earthing is an earthing system that consists of a GI earthing rod with chemical compounds for the safe flow of fault currents into the ground. In the traditional earthing method, the resistivity of the earth is typically affected by moisture in the ground or weather conditions. The chemical earthing method has an earthing rod made of GI material with chemical compounds for earthing.
This variation can reduce the efficiency of the grounding installation. It resolves this problem through a special electrode that has been developed, along with conductive backfill compounds that ensure a constant conductivity. The GI electrode is made of galvanized iron, which is coated with a layer of zinc to ensure that it is not corroded or rusted.

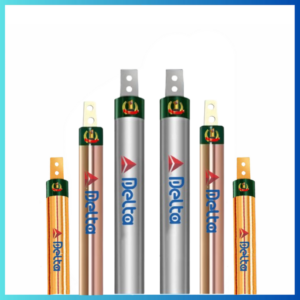

GI Earthing Electrodes
How GI Chemical Earthing Works
The fundamental idea behind GI chemical earthing is to ensure a low resistance path for the flow of fault currents so that the excess electricity can be safely discharged into the earth.
The process involves the following components:
- GI Electrode: A GI rod or pipe buried vertically into the earth.
- Backfill Compound: A mixture of conductive chemicals, minerals, and soil conditioners.
- Earth Pit: A pit where the GI electrode is buried.
- Inspection Chamber: A chamber for easy testing of the GI chemical earthing.
When there is an electrical fault, the fault current flows through the earth conductor, reaching the GI electrode. The backfill compound helps the current flow through the earth at a minimum resistance.
Key Features of GI Chemical Earthing
The approach ensures a reliable earth current for a variety of applications. Some of the key features are:
- Corrosion-Resistant Electrode
The GI rod or pipe is coated with zinc, thus preventing corrosion. This ensures a longer life for the earthing systems.
- Low Earth Resistance
The chemical backfill compound improves soil conductivity, helping maintain low earth resistance for effective fault current dissipation.
- Long Service Life
GI chemical earthing installations are designed for long-term performance with minimal maintenance requirements.
- Suitable for Different Soil Conditions
The conductive compound ensures stable earthing performance even in rocky, sandy, or high-resistivity soils.
- Easy Installation
Compared to traditional plate earthing systems, chemical earthing is relatively easier and faster to install.
Applications of GI Chemical Earthing
It is commonly used across various industries for electrical grounding:
- Residential Buildings: In homes or flats, effective earthing is required to protect the inhabitants from electrical faults.
- Commercial Buildings: In commercial buildings such as offices, shopping complexes, etc., effective earthing is required.
- Industrial Facilities: In industrial buildings such as factories or manufacturing plants, heavy electrical equipment is used.
- Power Distribution Mechanism: Electrical substations, transformers, etc., require effective earthing.
- Telecommunication and Data Centres: Sensitive electronic equipment in communication technology requires stable earthing to avoid signal interference and equipment failure.
GI Chemical Earthing vs Traditional Earthing
Traditional earthing methods, such as plate earthing or pipe earthing, rely heavily on soil moisture to maintain low resistance. During dry seasons or in high-resistivity soil, the effectiveness of these systems can decrease significantly.
It offers several improvements compared to traditional methods:
- More stable and consistent grounding performance
- Reduced dependence on soil moisture
- Lower maintenance requirements
- Faster and easier installation
- Longer service life
These advantages make chemical earthing a preferred choice for modern electrical installations.
Installation Considerations
For effective performance, it should be installed following proper engineering practices. Important factors include:
- Correct electrode depth
- Proper use of conductive backfill compound
- Secure earthing conductor connections
- Regular testing of earth resistance
- Proper inspection chamber for maintenance access
Professional installation ensures the earthing system performs reliably and complies with electrical safety standards.
GI Chemical Earthing Pricing
The pricing of a system may differ based on various parameters. However, the GI chemical earthing system is generally a cost-effective solution for grounding the system when compared to the copper-based earthing system. Also, the GI system does not compromise on the performance of the system.
The pricing of the GI chemical earthing system generally includes the GI electrode, the conductive backfilling compound, the earthing chamber, etc. However, the pricing may differ based on the addition of accessories to the system.
Factors That Affect GI Chemical Earthing Price
Several factors can influence the overall cost of the system.
- Electrode Size and Length: The electrodes come in different sizes. Larger electrodes are more expensive but can be very effective in some soils.
- Quality of the Backfill Compound: The compound used around the electrodes helps in providing low earth resistance. Although it may be a little expensive in the initial stages, it will be very effective in the long run.
- Installation Depth and Soil Condition: The soil conditions may be rocky or of high resistivity, which could mean a deeper installation.
- Quantity Required: Industrial or commercial projects often require multiple earthing pits, which increases the total project cost.
- Additional Components: Inspection chambers, earthing strips, clamps, and connectors can also influence the final price.
Average Cost Range
Even though the cost may vary depending on the geographical location and the source of supply, GI chemical earthing is a cost-effective solution compared with copper earthing. Thus, GI chemical earthing is a cost-effective solution for residential, commercial, and industrial applications where an earthing system is required at a lesser cost.
It is always best to consult a professional supplier of the earthing system if one wants a proper estimate of the cost of the system.
Conclusion
GI chemical earthing is a dependable and efficient grounding system that has been accepted for use in residential, commercial, and industrial electrical installations. The system works by using a combination of a galvanized iron rod and conducting chemical compounds to produce a fixed value for the earth resistance.
The reliability, efficiency, and cost-effectiveness of the GI chemical earthing system make the system suitable for the purpose of fulfilling the requirements for electrical safety. The system has been accepted for use in various electrical installations for safety from electrical accidents. With proper installation and periodic testing, the efficiency of this method can be ensured for a long period.
